Monocrystalline Die Casting Aluminum Street Light 30W 80W

Product Categories
Shanxi Guangyu Led Lighting Co.,Ltd.
Contact Now

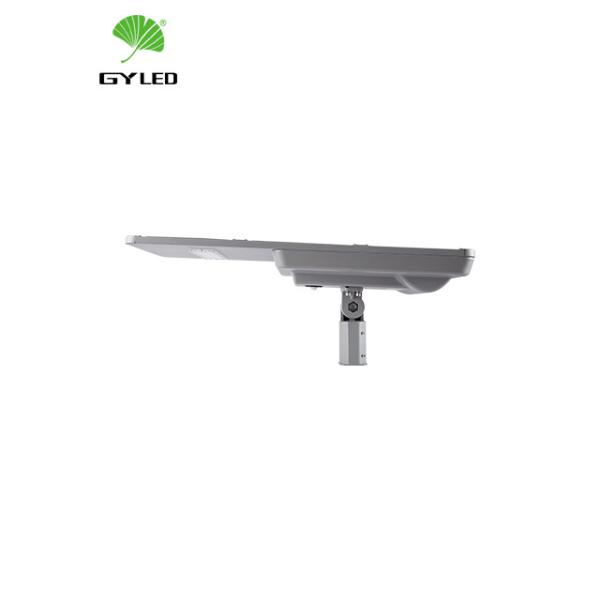

Monocrystalline Die Casting Aluminum Street Light 30W 80W

  • 1
  • 2
  • 3

Brand Name : GYLED

Model Number : GY4518TYNLD

Certification : CE ROHS

Place of Origin : CHINA

MOQ : 10

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200000PCS/YEAR

Delivery Time : 7-10DAYS

Packaging Details : 1PC IN 1CARTON

Item Mode : GY4518TYNLD

Lamp luminous efficiency : 170lm/w

Material : High quality die-casting aluminum alloy

Warranty : 5 years

Ip rating : IP66

Color temperature(cct) : 2500-6500k

System voltage(v) : 12V DC

Solar panel type : Monocrystalline

Battery type : LiFePO4 battery

Working Time : 2~3 days

Cri (ra>) : 70/80

Working temperature(℃) : -20 - 60℃

IK Rate : IK09

Application : road,highways,garden,streets,outdoor parking

Contact Now

Die casting aluminum solar street light 30W~80W 5 years warranty outdoor parking lighting

Overview
Streamlined design. Higher efficacy supply: 170lm/W.
The MPPT controller is optional. Multiple optical designs, better performance. Easy installation and maintenance.

GY4518YNLD series Solar LED street light will provide the best lumen output, the best stability, and a very long lifetime. Provide over 5 years warranty for the whole fixture.

Benefits

LED solar streetlight: stand-alone product, no electricity bill, and no grid connection.
Very long lifetime: innovative high heat resistance NiMH battery & intelligent lighting management.
Lighting service all night long: enhance personal safety, economic and social activities.
User friendly: Plug & Play and All-in-one concept, easy installation.
Connected product: Bluetooth enabled for product registration, remote monitoring, troubleshooting, and lighting profile management.

Adjusted angle: The installation angle can be adjusted to make the solar panels face the sun and improve the charging efficiency to the greatest extent.

Convenient maintenance: All components can be easily replaced.

Sensor control system:

When the illumination is less than 10lux,

it begins to work.

 Induction time Somebody under the light Nobody under the light
2H 100% 30%
3H 50% 20%
6H 20% 10%
1H 30% 10%
Daylight Automatic closing

Suitable For:
Streets
Highways/ Roadways/Sidewalk
Pathways
Parking lots
Parks / Open areas
Riverside pavements
Factories
Perimeter fences
Jetties
Schools
Campuses
Commercial
Private compounds

Technical Data Sheet

ITEM

GY4518TYNLD

GY4518TYNLD

GY4518TYNLD

Nominal Power

30W

40W

50W

Solar Panel Type

Monocrystalline

Solar Panel Parameters

18V 40W

18V 50W

18V 60W

Battery Type

LiFePO4

Battery Parameters

12.8V 18AH

12.8V 24AH

12.8V 27AH

System Voltage

12V

LED Brand

Lumileds

Light Distribution

II-M, III-M

CCT

2200K~6500K

Charging Time

6Hours

Working Time

2-3 Days(Auto Control)

Protection Grade

IP66/IK09

Luminous Efficiency

170lm/W

Operation

-20℃ to 60℃

Net Weight(kg)

11.4

13

14.5

Gross Weight(kg)

13.3

15

16.5

Package Dimensions(mm)

830*455*180

975*455*180

1083*455*180

Material

Aluminum

Luminous Flux

5100lm

6800lm

8500lm

Warranty

5 Years

ITEM

GY4518YYNLD

GY4518TYNLD

Nominal Power

60W

80W

Solar Panel Type

Monocrystalline

Solar Panel Parameters

18V 80W

18V 100W

Battery Type

LiFePO4

Battery Parameters

12.8V 30AH

12.8V 42AH

System Voltage

12V

LED Brand

Lumileds

Light Distribution

II-M, III-M

CCT

2200K~6500K

Charging Time

6Hours

Working Time

2-3 Days(Auto Control)

Protection Grade

IP66/IK09

Luminous Efficiency

170lm/W

Operation

-20℃ to 60℃

Net Weight(kg)

15.5

18

Gross Weight(kg)

19.5

23.5

Package Dimensions(mm)

1447*455*180

1577*455*180

Material

Aluminum

Luminous Flux

10000lm

13600lm

Warranty

5 Years
